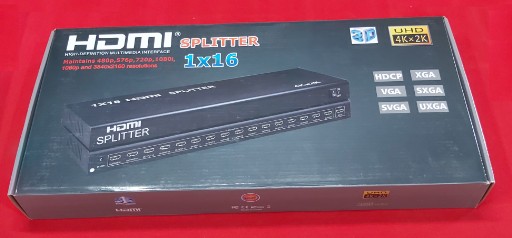

HDMI Splitter 16port 4Kx2K

KVM , Splitter & Switch
INTRODUCTION
HDMI 4K 1x16 Splitter
The HDMI 4K 1x16 Splitter uses a single HDMI source, accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to sixteen HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

Features:
• Support HDMI 1.4b
• Support 3D video format
• Resolution up to 3840x2160/30Hz
• Support 3.4Gbps data rate for TMDS clock up to 340MHz
• Support deep color 8/10/12bit
• Support AWG26 HDMI standard cable:
1)when the resolution is 1080p and below, input up to 10 meters, output up to 15 meters.
2)when the resolution is 4K, input up to 5 meters, output up to 10 meters.
• Support displaying single source, multi-output high-definition signal source from DVD player A/V receiver, set-top box
• Need DC 12V/2A power supply

Specifications:
HDMI version..... HDMI 1.4b
HDMI resolution...up to 3840x2160/30Hz
Support video color format........deep color 8/10/12bit
Support audio format....... DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth.........340MHZ
Max transmission bandwidth.3.4Gbps
Input cable distance...(1080p resolution) <= 10m,(4Kresolution)<5m AWG26 HDMI standard cable
Output cable distance..(1080p resolution) <=15m,(4Kresolution) 10m AWG26 HDMI standard cable
HDMI input.........1
HDMI output...... 16
Max working current......... .1.15A
Power adapter format ........ Input: AC (50HZ, 60HZ) 100V-240V;Output: DC12V/2A
Operating Temperature range….(-15 to +55C)
Operating Humidity range…...5 to 90% RH (No Condensation)
Dimension (L x W x H)...........460x150x40 (mm)
Weight.........1620g
